Tyre Changers & Wheel Balancers to suit Car - Truck Wheels

Tyre Changers to Suit Car Wheels

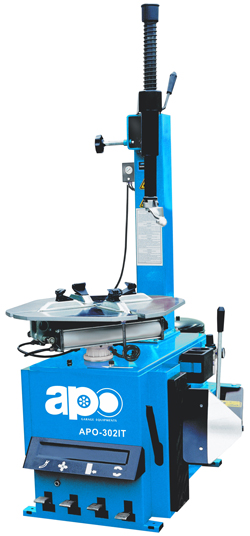

APO302IT

Semi-automatic suitable for car, motorcycle and light truck tyres.

Suitable for wheels up to 24" (with low profile tyres)

Special shaped large turntable with a powerful motor.

Quick Air Booster makes seating tyres onto the bead a simple task especially helpful with low profile tyres.

Technical Specifications
Motor Power	.75 kw (1 H.P)
Power Supply	240 Volts
Maximum Wheel Diameter	41" (1040mm)
Maximum Wheel Width	14" (355mm)
Outside Clamping	10" - 21"
Inside Clamping	12" - 24"
Air Supply	8 Bar / 116 PSI
Bead Breaker Force	2500 kg
Weight	195 kg
Package Size	960x760x895mm

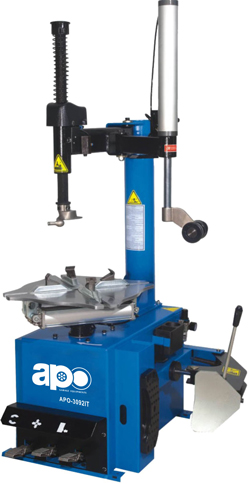

APO3092IT

Fully-automatic suitable for car, motorcycle and light truck tyres.

Fully automatic pneumatic rocker arm with nylon pressing roller that helps protect alloy rims, assisting in mounting and demounting tyres

Rotary type right helper arm

Suitable for wheels up to 24" (with low profile tyres)

Special shaped large turntable with a powerful motor.

Quick Air Booster makes seating tyres onto the bead a simple task especially helpful with low profile tyres.

Technical Specifications
Motor Power	.75 kw (1 H.P)
Power Supply	240 Volts
Maximum Wheel Diameter	41" (1040mm)
Maximum Wheel Width	16" (406mm)
Outside Clamping	10" - 21"
Inside Clamping	12" - 24"
Air Supply	8 Bar / 116 PSI
Bead Breaker Force	2500 kg
Weight	225 kg
Package Size	960x760x880mm

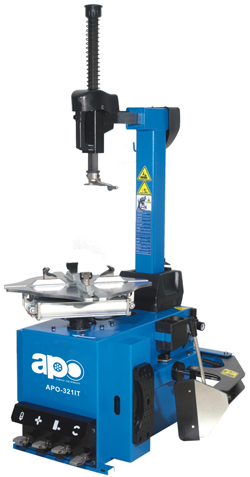

APO321IT

Fully-automatic suitable for car, motorcycle and light truck tyres.

Pneumatic tilting column with pneumatic locking position of arm.

Suitable for wheels up to 24" (with low profile tyres)

Special shaped large turntable with a powerful motor.

Quick Air Booster makes seating tyres onto the bead a simple task especially helpful with low profile tyres.

Technical Specifications
Motor Power	.75 kw (1 H.P)
Power Supply	240 Volts
Maximum Wheel Diameter	41" (1040mm)
Maximum Wheel Width	14" (355mm)
Outside Clamping	10" - 21"
Inside Clamping	12" - 24"
Air Supply	8 Bar / 116 PSI
Bead Breaker Force	2500 kg
Weight	217 kg
Package Size	960x760x960mm

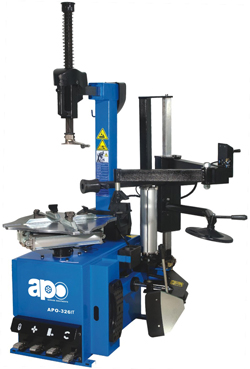

APO326IT

Fully-automatic suitable for car, motorcycle and light truck tyres.

Pneumatic tilting column with pneumatic locking position of arm

Central positioning arm device

Suitable for wheels up to 24" (with low profile tyres)

Special shaped large turntable with a powerful motor.

Quick Air Booster makes seating tyres onto the bead a simple task especially helpful with low profile tyres.

Technical Specifications
Motor Power	.75 kw (1 H.P)
Power Supply	240 Volts
Maximum Wheel Diameter	41" (1040mm)
Maximum Wheel Width	14" (355mm)
Outside Clamping	10" - 21"
Inside Clamping	12" - 24"
Air Supply	8 Bar / 116 PSI
Bead Breaker Force	2500 kg
Weight	312 kg
Package Size (main body)	960x760x960mm
Package Size (help arm)	1230x450x350mm

Tyre Changers to Suit Truck & Car Wheels

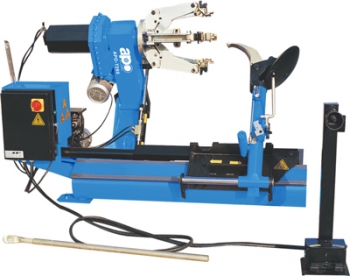

APOT260

Electrohydraulic operation

Suitable for Truck, Bus & Car Tyres

Clockwise and anti-clockwise rotation

Clamping Range from 14” to 26”

Adjustable tyre platform controlled by the moveable control unit

Hydraulic motor with pressure adjusting device

Adjustable clamping force

240 volt Single Phase motors

Technical Specifications
Pump Motor	1.5 kw (2 H.P.)
Rotating Motor	2.2 kw (3 H.P.)
Power Supply	240 Volts
Clamping Capacity	14" - 26"
Maximum Tyre Diameter	1200 mm
Maximum Tyre Width	700mm
Maximum Wheel Weight	500 kg
Weight	670 kg
Package Size	2000x1580x950mm

Please Note this is a 415 Volt 3 Phase Machine and is NOT available in single phase

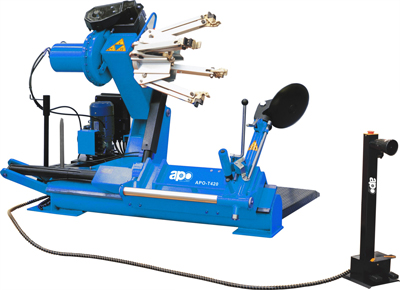

APOT420

Electrohydraulic operation

Suitable for Truck, Bus & Car Tyres

Clockwise and anti-clockwise rotation

Clamping Range from 14” to 42”

Adjustable tyre platform controlled by the moveable control unit

Hydraulic motor with pressure adjusting device

Adjustable clamping force

415 volt Three Phase Motors

Technical Specifications
Pump Motor	2.2 kw (3 H.P.)
Rotating Motor	2.2 kw (3 H.P.)
Power Supply	415 Volts (3 Phase)
Clamping Capacity	14" - 42"
Maximum Tyre Diameter	1600 mm
Maximum Tyre Width	980mm
Maximum Wheel Weight	500 kg
Weight	867 kg
Package Size	2100x1700x1080mm

Wheel Balancers for Car Wheels

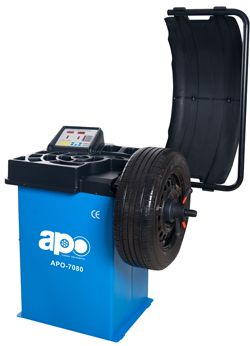

APO7080

Suitable for Car Tyres up to 24"

Self-calibrating and diagnosis

Manual operated distance and wheel diameter input.

High accuracy +- 1 gram with a stable integrated circuit

Mechanical principal heat treated axis makes for precision consistent measurements

LED Numeric display screen

Special extended main shaft makes the balancer suitable for larger and heavier wheels

With a 40mm thread that increases the load bearing and data accuracy

Technical Specifications
Maximum Wheel Weight	65 Kg
Motor Power	.2 k/w
Power Supply	240 Volts
Balancing Accuracy	+- 1g
Balancing Speed	200 R.P.M
Rim Diameter	10" - 24"
Rim Width	1.5" - 20"
Measuring Time	8 Seconds
Weight	122 kg
Package Size	960x760x1160mm

Wheel Balancers for Truck & Car Wheels

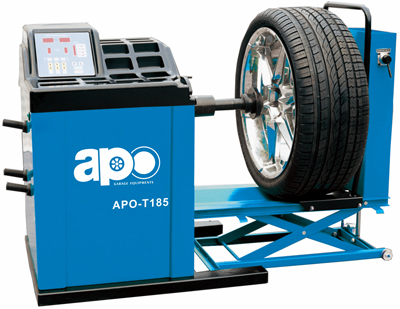

APOT185

Suitable for Truck Bus & Car Tyres up to 150 Kg

Self-calibrating and diagnosis

Manual operated distance and wheel diameter input.

Balancing accuracy +- 50 gram

With pneumatic tyre lifting platform

LED Numeric display screen

Various balancing modes

Equipped with brake pedal

Technical Specifications
Maximum Wheel Weight	150 Kg
Motor Power	.4 k/w
Power Supply	240 Volts
Balancing Accuracy	+- 50g
Balancing Speed	200 R.P.M
Rim Diameter	13" - 24"
Rim Width	1.5" - 20"
Measuring Time	8 Seconds
Weight	250 kg
Package Size	1200x960x1190mm

If you would like more information on tyre changers please contact us
